Description:
Description Material Plastic Product Attributes Electronic Package Size 200*150*100(1mm)Product information:
It is one of the most cost-effective and up-to-date robot building robotic kits for programming and DIY.
Electronic stick robot for kids and adults, made of building blocks; easy to install and expand at home, programmable and fully functional.
The kit includes a free detailed tutorial (including video instructions, schematics and source code, and graphical programming).

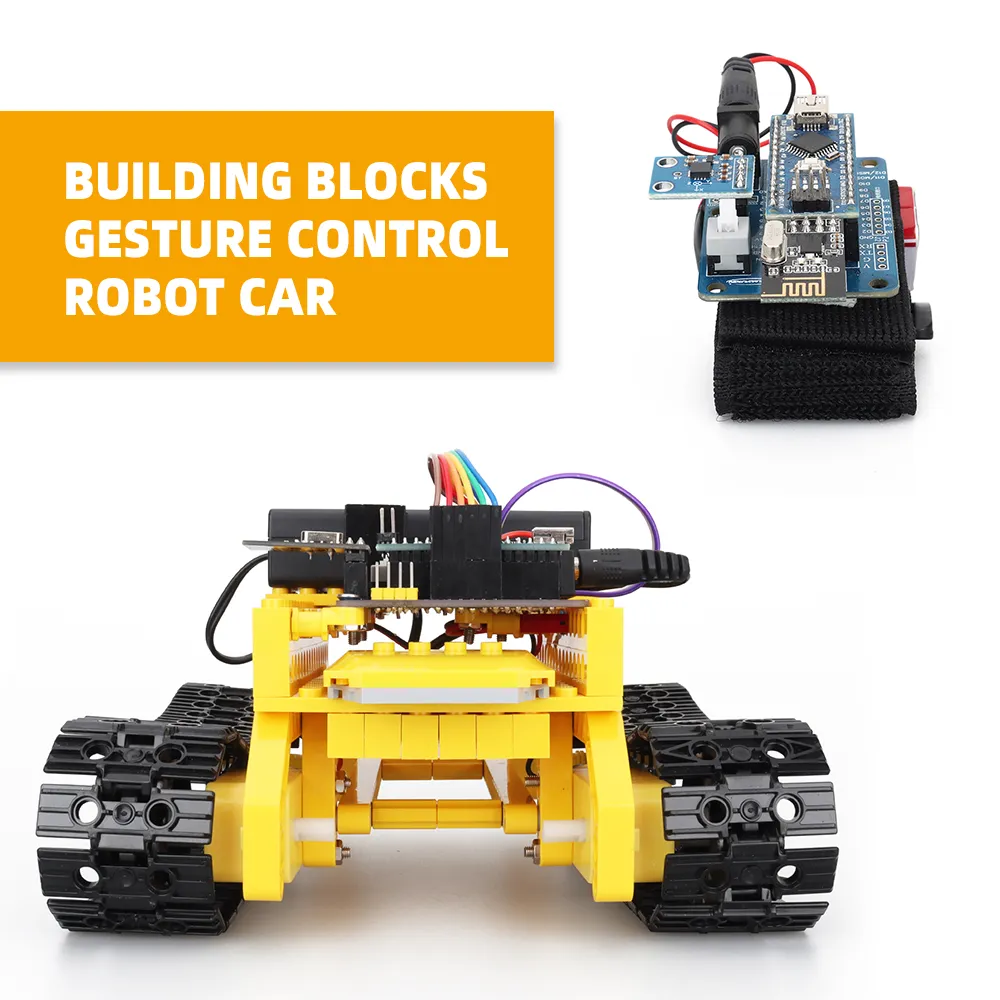

In this kit, a gesture-controlled robot is developed using ADXL335, 3-axis accelerometer and 3-axis gyroscope sensor, and CH340 nano main
control board.

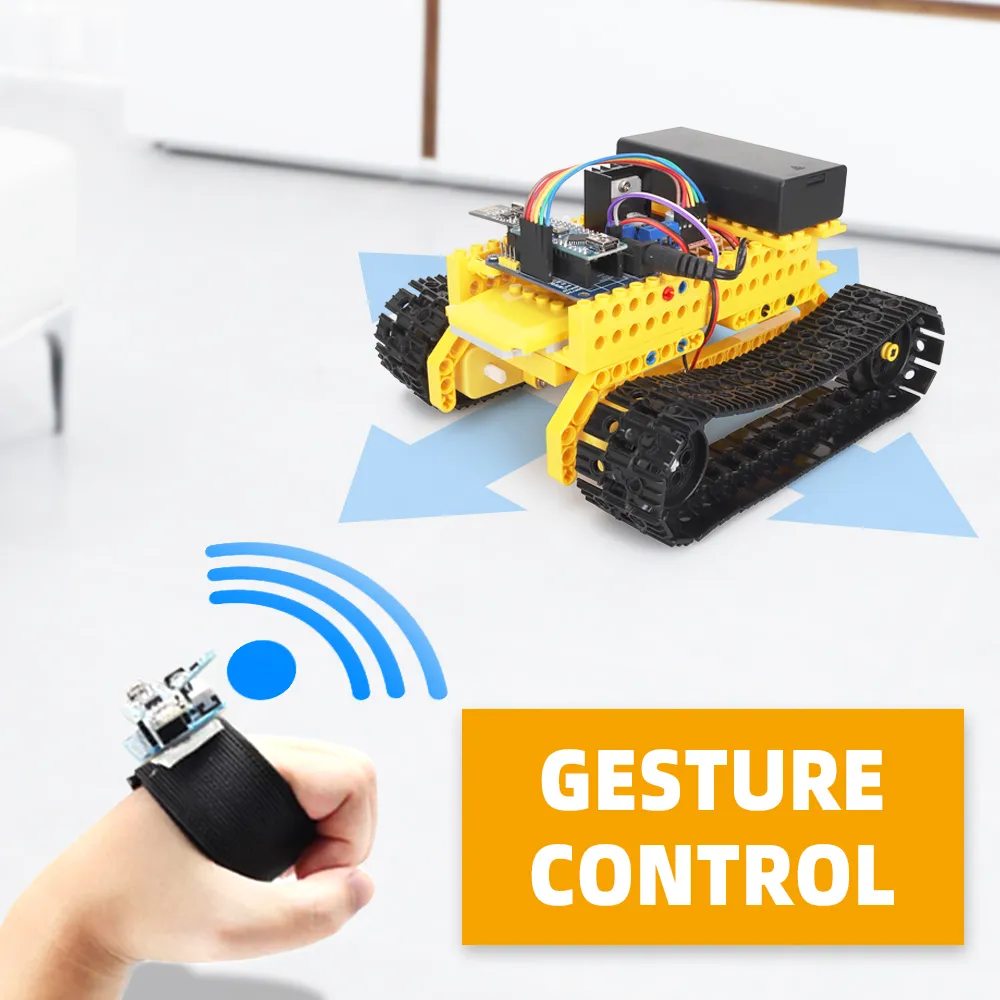

Therefore, the movement of the robot is controlled by gestures, rather than using a remote control with buttons or joysticks.
The project is based on wireless communication, where gesture data is transmitted to the smart cart via a radio frequency link (radio
frequency transceiver).
Environment:
Main control: arduino Nano programming
Software: arduino IDE\Mind+
Programming language: C\C++, graphical programming
Car structure: high-quality building blocks motor
Voltage range: 1-6V; motor shaft length: 10mm; speed: 6.0V 100 rpm drive
Mode: Motor control adopts L298N drive
Control method: gesture control
Power supply mode: external 6~9V voltage
(The body is powered by two 18650 lithium batteries, and the gesture control part is powered by 9V dry batteries.)
Note:
18650 battery not included.
Packing list:

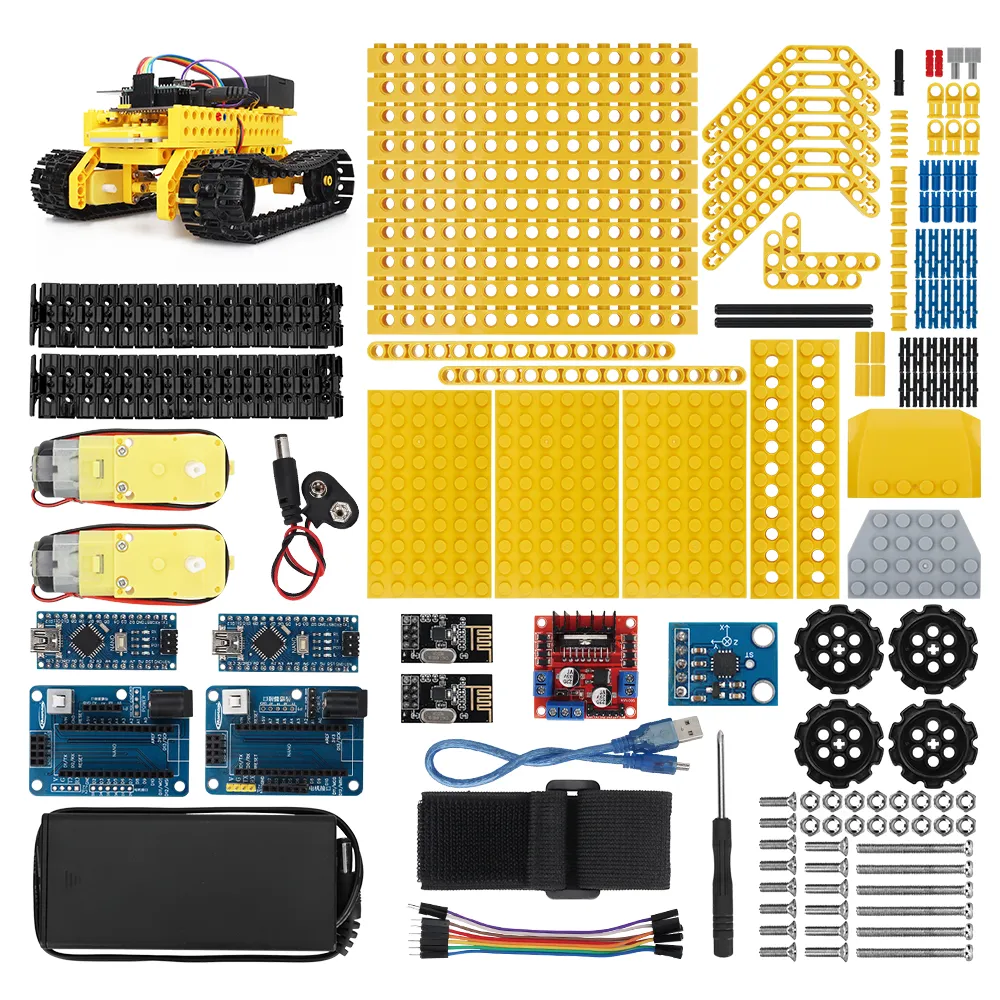

As show in picture:
