Description:

Suitable Components and Features for Automotive Starter Motors

The automotive starter motor is a crucial component that initiates the engine's combustion process by cranking the engine to life. Designed to provide a reliable and powerful burst of torque, starter motors must be durable, efficient, and compatible with the specific requirements of a vehicle's engine. Understanding the suitable components, materials, and configurations is essential for choosing or maintaining a starter motor that ensures optimal performance.

Key Components of Automotive Starter Motors

1. Armature

• A rotating part of the motor made of high-quality copper windings.
• Converts electrical energy into mechanical motion.
• Suitability: Copper or high-performance composite materials ensure durability and efficiency.

2. Commutator

• Works in conjunction with the brushes to transfer current to the armature windings.
• Made of durable materials like copper or alloys to withstand wear and high temperatures.
• Suitability: Precision engineering and corrosion resistance ensure a long lifespan.

3. Brushes

• Conduct electricity between the stationary and rotating parts.
• Typically made of carbon or carbon composites for durability.
• Suitability: Heat-resistant and low-friction materials minimize wear.

4. Field Coils or Permanent Magnets

• Generate the magnetic field needed for the motor's operation.
• Field Coils: Copper windings for high-output systems.
• Permanent Magnets: Used in modern lightweight starter motors for better efficiency.
• Suitability: Efficient materials reduce energy consumption and weight.

5. Drive Gear (Bendix Drive)

• Engages with the engine's flywheel to transmit torque.
• Made of hardened steel for durability.
• Suitability: Precisely machined gears ensure smooth engagement and reduced wear.

6. Solenoid

• Acts as a relay to connect the battery to the starter motor.
• Pushes the drive gear into engagement with the flywheel.
• Suitability: High-quality solenoids provide reliable and fast operation.

Materials Suitable for Starter Motors

1. Copper Windings

• High conductivity ensures efficient energy transfer.
• Durable and resistant to heat, making it ideal for armatures and field coils.

2. Hardened Steel

• Used for gears and shafts to withstand high torque and stress.
• Ensures long-lasting performance even under demanding conditions.

3. Carbon or Carbon Composites

• Low-friction and heat-resistant materials for brushes.
• Reduces maintenance frequency and improves lifespan.

4. Aluminum Housing

• Lightweight and corrosion-resistant material for the starter motor body.
• Reduces the overall weight of the vehicle.

Starter Motor Types and Suitability

1. Direct Drive Starter Motors

• Traditional design with the armature directly connected to the drive gear.
• Suitable for older vehicles or smaller engines.
• Pros: Simple design, reliable in low-demand applications.

2. Gear Reduction Starter Motors

• Incorporates a gear system to increase torque while reducing motor size.
• Suitable for modern vehicles and high-compression engines.
• Pros: Lightweight, energy-efficient, and compact.

3. Permanent Magnet Starter Motors

• Uses permanent magnets instead of field coils for a magnetic field.
• Suitable for fuel-efficient and hybrid vehicles.
• Pros: Lightweight, energy-efficient, and environmentally friendly.

4. Stop-Start Starter Motors

• Designed for vehicles with stop-start systems to handle frequent start cycles.
• Suitable for hybrid and fuel-efficient engines.
• Pros: High durability, fast engagement, and minimal wear.

Maintenance and Replacement Tips for Starter Motors

1. Regular Inspection

   • Check for signs of wear or damage on brushes, solenoids, and drive gears.
   • Inspect connections for corrosion or loose wiring.
2. Test Electrical System

   • Ensure the battery delivers sufficient power to the starter motor.
   • Verify the solenoid's operation and electrical continuity.
3. Replace Worn Components

   • Replace brushes, drive gears, or solenoids as needed to prevent failure.
   • Use high-quality replacement parts to ensure compatibility and durability.
4. Lubricate Moving Parts

   • Apply appropriate grease to the drive gear and shafts to reduce friction and wear.

Ideal Applications

• Passenger Cars: Lightweight and efficient starters for smooth operation in compact engines.
• Trucks and Heavy-Duty Vehicles: High-torque starters for large, high-compression engines.
• Hybrid and Electric Vehicles: Advanced starters with stop-start capabilities and energy-efficient designs.
• Off-Road Vehicles: Durable starters resistant to harsh conditions and frequent starts.

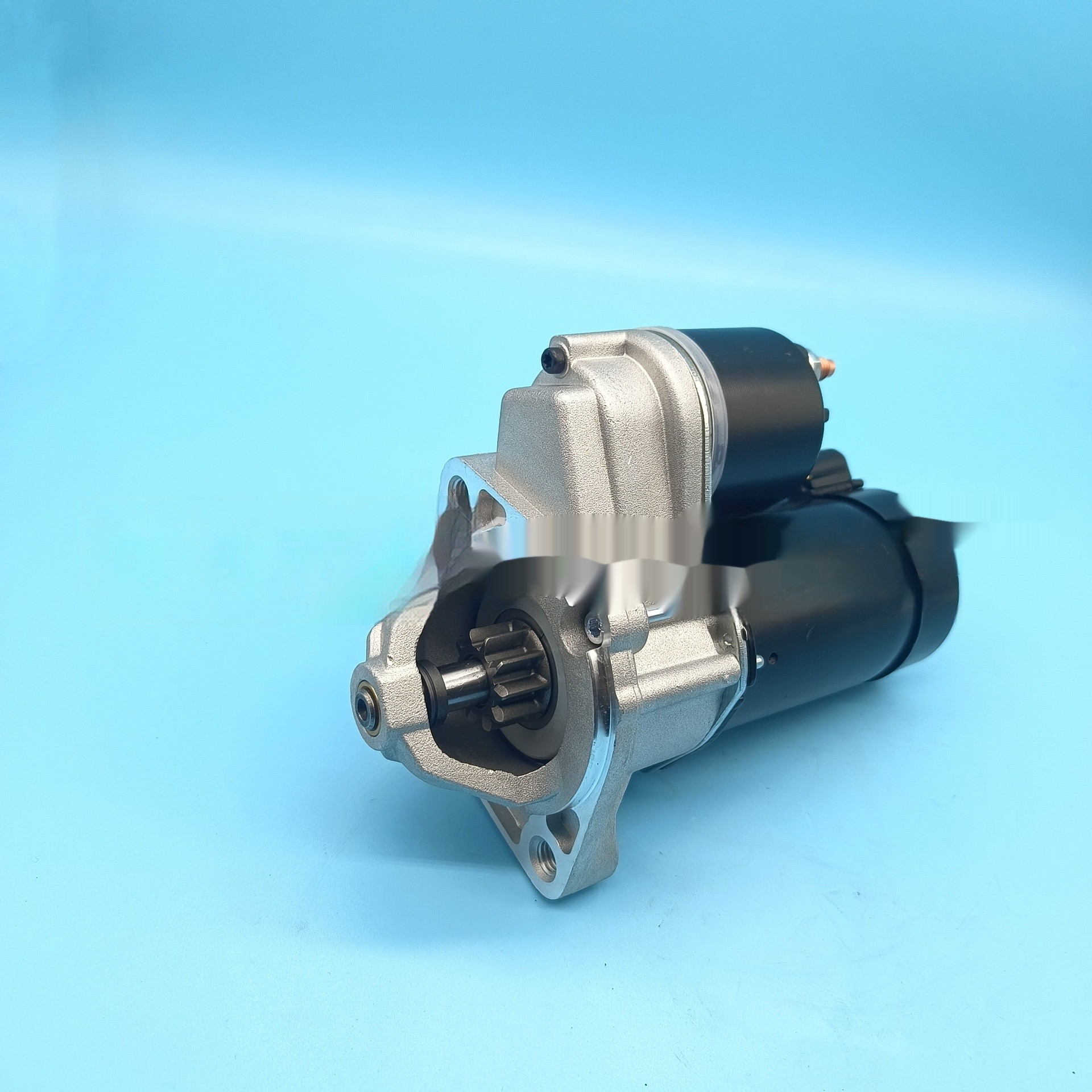

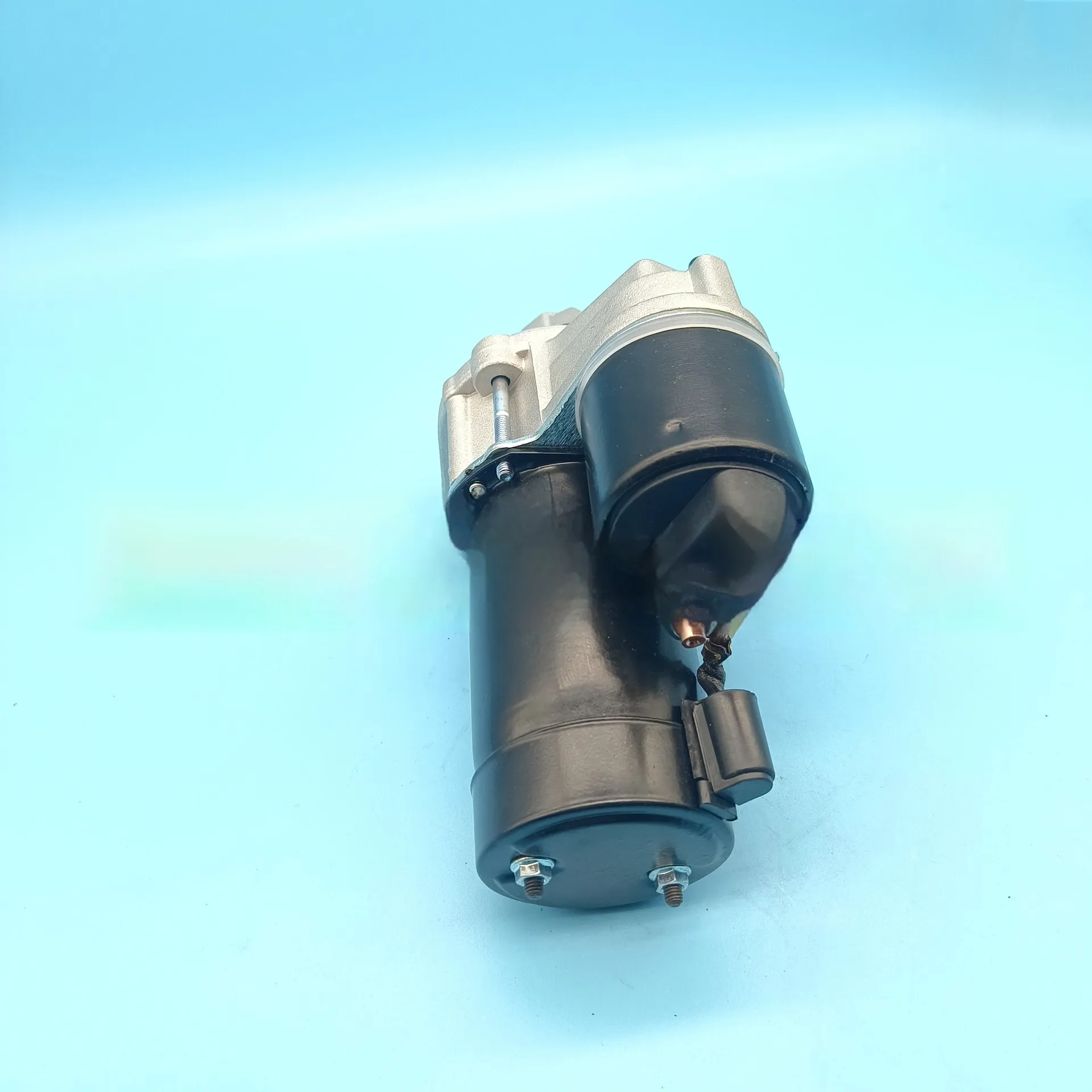

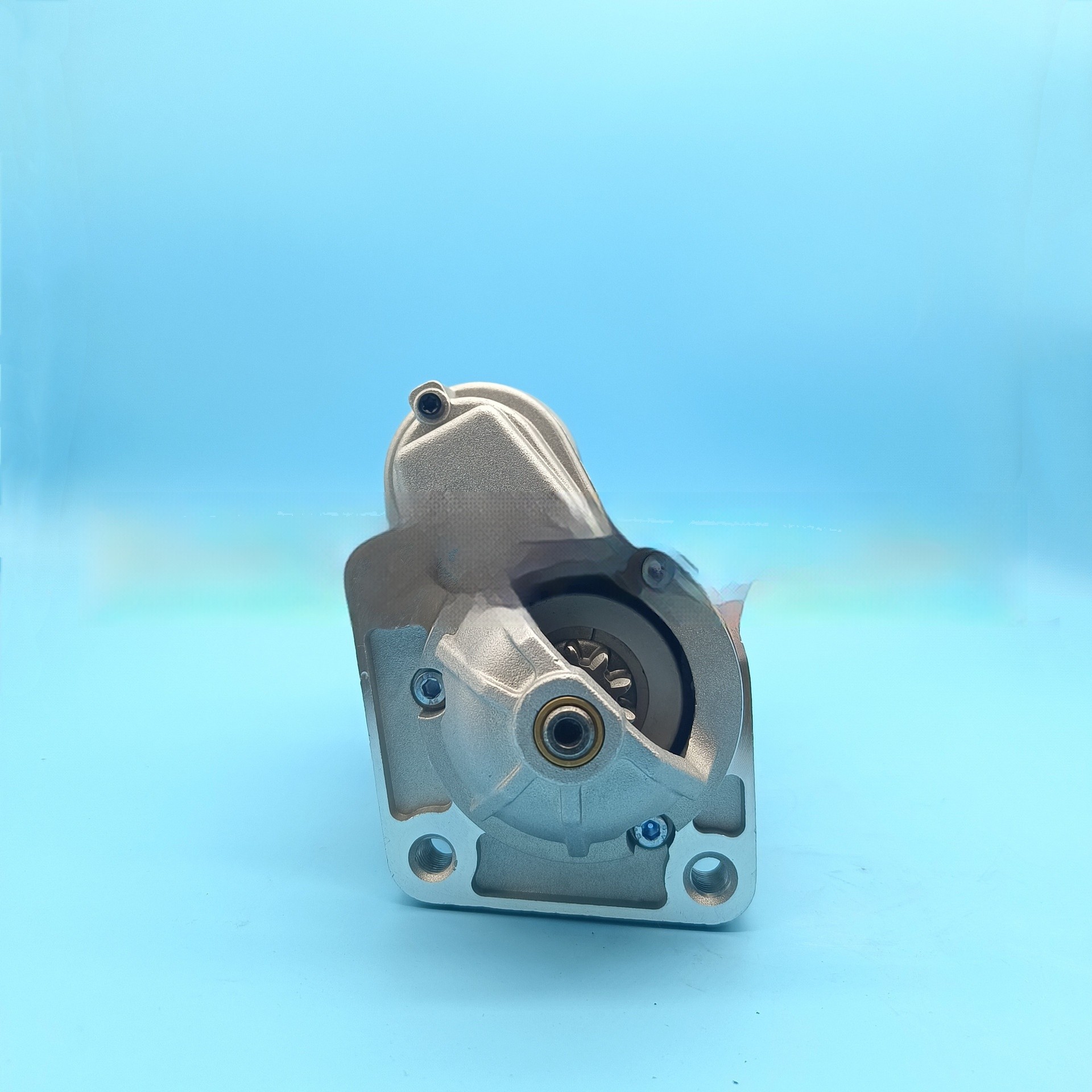

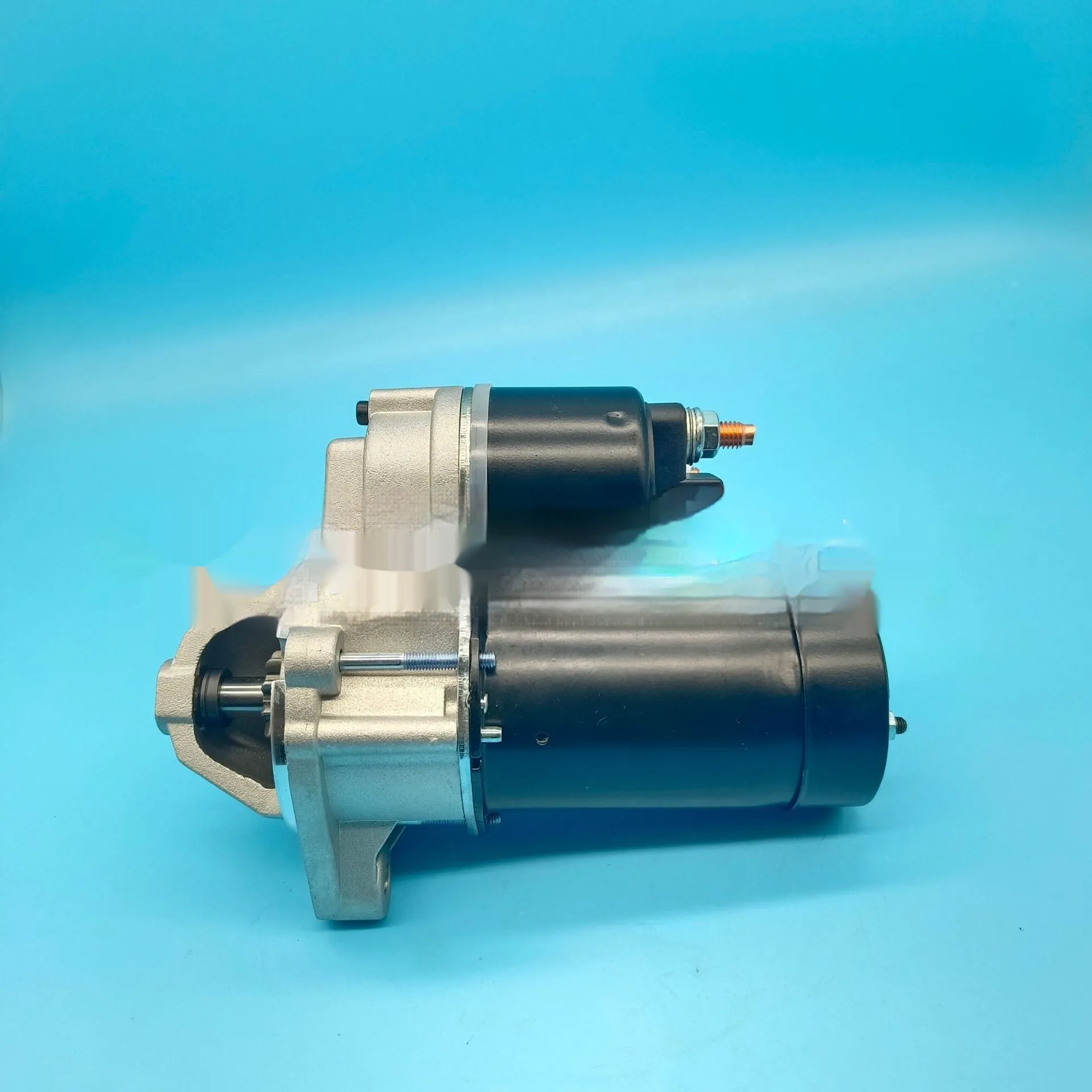

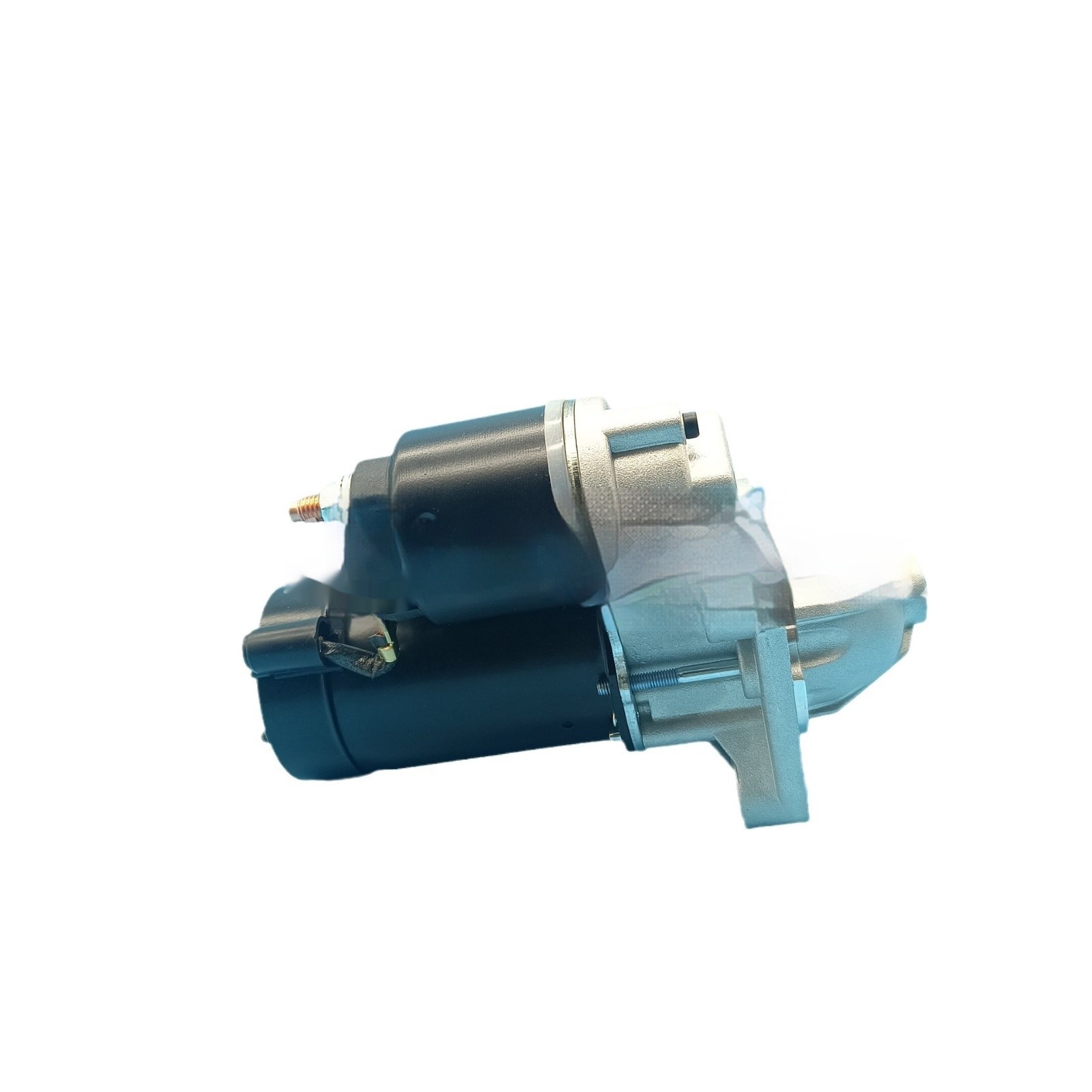

Product information:

Number of teeth: 10T
Compatible models: Ford Fiesta
Supporting relationship: Applicable

Packing list:

Start motor * 1
