Description:

Stair Controller, Stair Sensor Controller, Light Bar Step Controller – Smart Lighting for Modern Staircases

Enhance the aesthetics and safety of your stairs with the Stair Controller, Stair Sensor Controller, and Light Bar Step Controller. Designed to provide dynamic, motion-activated lighting effects, this smart controller ensures that your staircase lighting is both functional and visually stunning. Whether for residential homes, commercial buildings, or modern offices in New Zealand, this versatile system is perfect for creating a sophisticated, ambient atmosphere while improving nighttime visibility.

Key Features of the Stair Controller, Stair Sensor Controller, Light Bar Step Controller

1. Smart Motion Sensor Technology

• Infrared Motion Sensors: Detects movement at the top and bottom of the stairs, automatically triggering the lights.
• Hands-Free Operation: No need for switches—lights turn on and off automatically as you ascend or descend.
• Adjustable Sensitivity: Customize sensor range to fit different stair lengths and layouts.

2. Dynamic Lighting Effects

• Sequential Lighting: Lights illuminate each step in sequence as you walk up or down, creating a captivating visual effect.
• Adjustable Speed & Brightness: Control the fade-in and fade-out effects for a personalized lighting experience.
• Compatible with LED Strips & Light Bars: Works with 12V and 24V LED light strips, including RGB and single-color lights.

3. Energy-Efficient Design

• Auto Power-Off: Lights turn off automatically after a set time, reducing energy consumption.
• Low Power Consumption: Designed to be eco-friendly, perfect for homes aiming for energy efficiency.
• Dimmable Lights: Adjust brightness levels to save energy without compromising aesthetics.

4. Easy Installation & Versatile Setup

• Plug-and-Play System: Simple wiring with clear labels for quick installation—ideal for DIY enthusiasts.
• Flexible Design: Supports up to 32 steps with customizable lighting configurations.
• Compact Controller Unit: Easily mounts under stairs, in control panels, or in hidden locations.

5. Smart Control Options (Optional Models)

• Remote Control Support: Adjust lighting modes, speed, and brightness with an included remote control.
• App Control (Optional): Manage your stair lighting via Bluetooth or Wi-Fi using a smartphone app.
• Voice Control Compatibility: Integrates with Google Home or Amazon Alexa (for smart home models).

6. Safety & Durability

• Overload & Short-Circuit Protection: Ensures safe operation by protecting against power surges and electrical faults.
• Heat-Resistant Components: Built to withstand continuous use without overheating.
• Water-Resistant Sensors: Suitable for both indoor and semi-outdoor installations.

Benefits of the Stair Controller, Stair Sensor Controller, Light Bar Step Controller

✔ Enhance Staircase Safety

• Improves visibility at night, reducing the risk of trips and falls, especially for children, elderly people, and pets.
• Automatic lighting ensures no one is left navigating dark stairs.

✔ Create a Modern Aesthetic

• Adds a luxurious, high-tech feel to homes, offices, or commercial spaces with dynamic light effects.
• Perfect for modern interior designs, minimalist homes, and contemporary offices.

✔ Eco-Friendly & Energy Efficient

• Reduces unnecessary energy usage with motion-activated control and auto shut-off.
• Low-voltage design minimizes electricity consumption, making it an eco-friendly lighting solution.

Technical Specifications

• Controller Type: Motion-Activated Stair Light Controller
• Input Voltage: 12V/24V DC
• Current Capacity: Up to 10A (model-dependent)
• Supported Lights: LED strips, LED bars, RGB lights, single-color LEDs
• Sensor Type: Infrared motion sensors (dual sensors for top and bottom detection)
• Control Options: Manual, Remote, App (Bluetooth/Wi-Fi for smart models)
• Lighting Modes: Sequential, fade-in/out, custom effects
• Adjustable Timer: 5 seconds to 5 minutes (auto-off timer)
• Number of Steps Supported: Up to 32 steps
• Operating Temperature: -20°C to 60°C
• Water Resistance: IP44 (sensors), IP20 (controller)

Eco-Friendly & Cost-Effective Solution

The Stair Sensor Controller System promotes sustainability and energy efficiency:

• Motion-Activated Lighting: Lights only when needed, reducing energy waste.
• Dimmable LED Support: Lower power consumption while maintaining aesthetic appeal.
• Durable Materials: Long-lasting components reduce the need for frequent replacements.

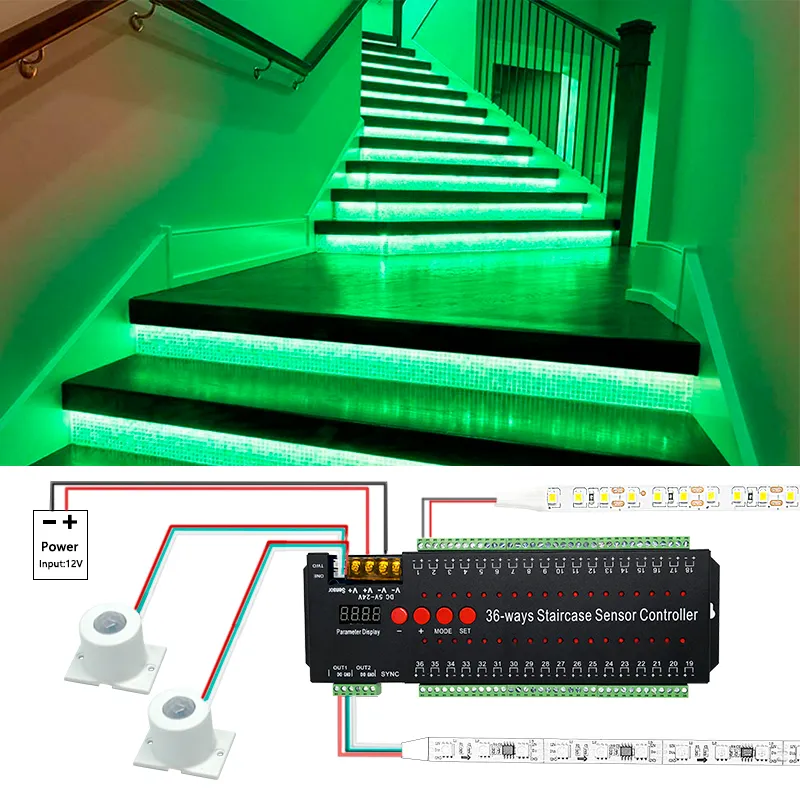

How to Install & Use

1. Mount the Sensors: Place motion sensors at the top and bottom of the staircase.
2. Connect LED Lights: Wire your LED strips or light bars to the controller unit.
3. Power Connection: Connect the controller to a 12V or 24V power supply.
4. Adjust Settings: Use the control panel, remote, or app to customize light effects, speed, and brightness.
5. Test the System: Walk up and down the stairs to ensure lights activate sequentially as intended.

Perfect for Residential and Commercial Applications in New Zealand

The Stair Controller System is ideal for:

• Modern Homes: Create a luxurious, futuristic look in residential staircases.
• Commercial Spaces: Perfect for hotels, restaurants, offices, and showrooms.
• Theaters & Cinemas: Adds ambient lighting for staircases in dark environments.
• Outdoor Staircases: Suitable for covered outdoor stairs (with IP-rated models).

Why Choose the Stair Controller, Stair Sensor Controller, Light Bar Step Controller?

1. Motion-Activated Convenience: Hands-free lighting for safety and ease of use.
2. Dynamic Light Effects: Create stunning sequential lighting for modern interiors.
3. Energy-Efficient Design: Low power consumption with auto shut-off features.
4. Easy Installation: Plug-and-play design for DIY setups or professional installations.
5. Smart Control Options: Remote, app, and voice control for smart homes (optional).

Product information:

Material: iron shell
Power supply: AC
Model: LED-36 Road
Applicable lamp: 5050 2835

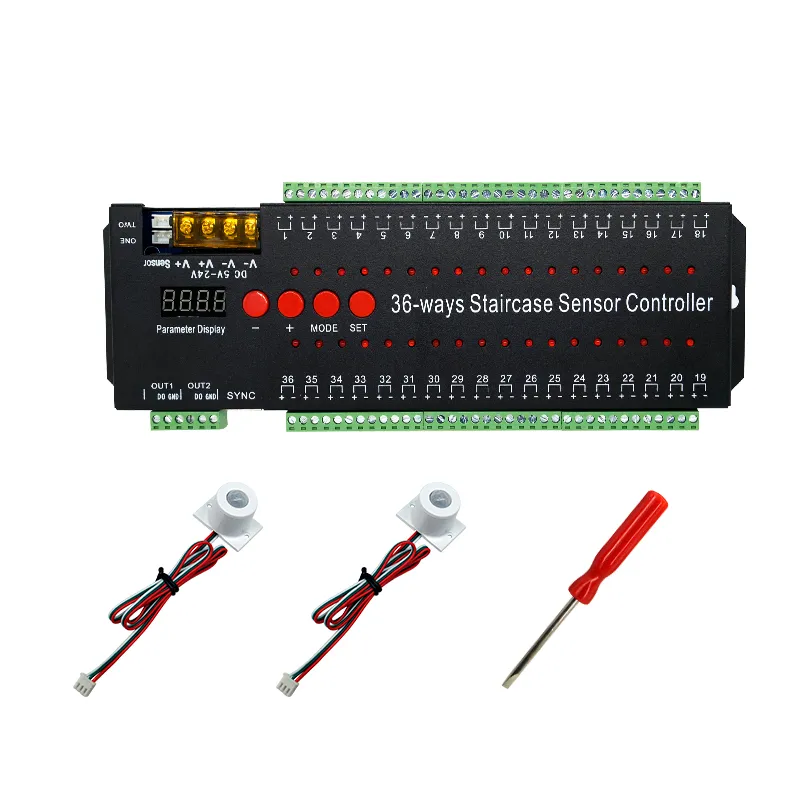

Packing list:

Light bar controller*1
