Handheld Small Oscilloscope Convenient Wave Table Auto Repair
$372.79 NZD
Approx $217.33 USD
Description:
Handheld Small Oscilloscope – Convenient Wave Table for Auto Repair & Electronics Testing
Introduction
The Handheld Small Oscilloscope is a compact, portable, and high-precision wave table designed for automotive diagnostics, electronics testing, and circuit analysis. Whether you’re a professional auto technician, an electronics engineer, or a DIY hobbyist, this convenient oscilloscope provides real-time waveform analysis, signal detection, and troubleshooting capabilities in a lightweight and user-friendly device.
With high sampling rates, multiple waveform display modes, and intelligent measurement functions, this handheld oscilloscope is an essential tool for diagnosing automotive ignition systems, testing sensors, checking electronic circuits, and troubleshooting signal issues.
Key Features of the Handheld Small Oscilloscope
1. Compact & Portable Design for On-the-Go Diagnostics
- Lightweight and easy to carry, perfect for fieldwork and mobile auto repair.
- One-handed operation for quick and efficient waveform testing.
- Durable, rugged construction for workshop and outdoor use.
2. High Sampling Rate & Wide Bandwidth
- Up to 1MHz to 100MHz bandwidth, depending on the model.
- Fast sampling rates (up to 1GS/s) for accurate signal capture.
- Real-time and single-shot waveform analysis for detailed signal observation.
3. Multi-Function Waveform Analysis
- Voltage, current, and frequency measurements in real-time.
- AC/DC signal analysis for automotive and electronics diagnostics.
- Waveform memory function for data logging and comparison.
4. Auto Repair & Automotive Diagnostics
- Ideal for testing ignition signals, fuel injectors, sensors, and alternators.
- Detects voltage fluctuations and irregular waveforms in vehicle circuits.
- Helps diagnose misfires, electrical faults, and sensor malfunctions in automotive systems.
5. LCD Digital Display with Intuitive User Interface
- Bright, high-resolution screen for clear waveform visualization.
- Easy-to-use buttons and touch operation for quick adjustments.
- Multiple display modes including X-Y plot and FFT spectrum analysis.
6. Built-in Rechargeable Battery for Long-Lasting Operation
- Extended battery life for continuous use in the field.
- Fast charging with USB-C or DC power input.
- Battery life indicator for efficient power management.
7. Multiple Input Channels & Trigger Modes
- Single and dual-channel options for more detailed testing.
- Auto, normal, and single trigger modes for precise waveform capture.
- Adjustable time base and amplitude scaling for customized analysis.
8. USB Connectivity & Data Storage
- Transfer waveform data to a computer via USB connection.
- Save captured signals for future analysis and report generation.
- Compatible with Windows and other software for extended diagnostics.
Material;Plastic, Others
Product Attributes;Battery Contains
Package Size;220*120*50(1mm)
Product information:
Type: Digital oscilloscope
Bandwidth: 40-70 (MHz)
Sampling rate: 250MSa/s (GS/s)
Waveform capture rate: 10000 (wfms/s)
Dimensions: 198*38*96 (mm)

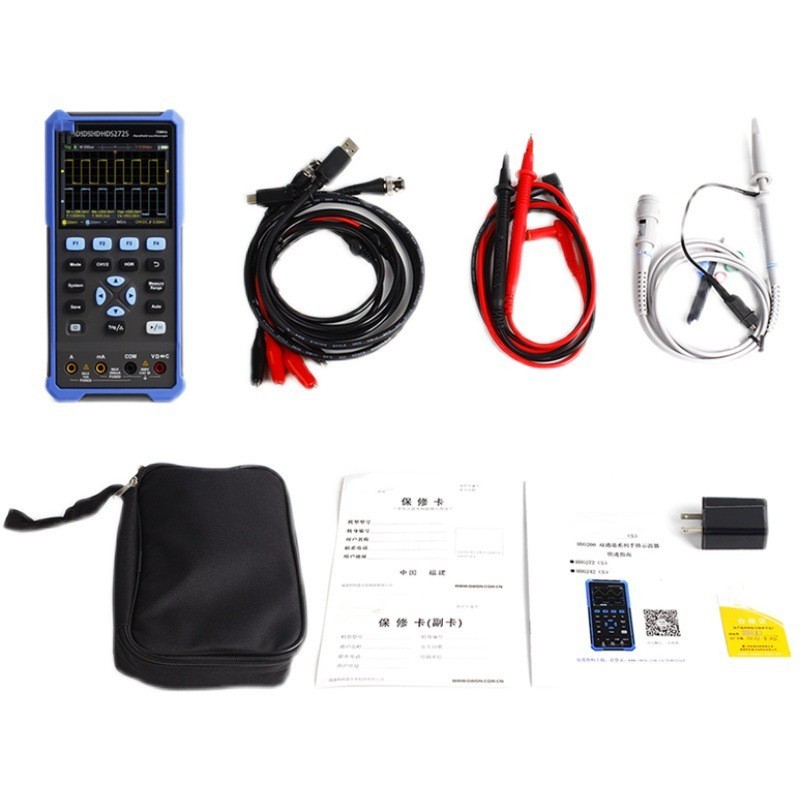

Packing list:
1* oscilloscope/portable bag/oscilloscope probe pen/adapter/correction pen /USB cable/multimeter pen/manual /BNC turn crocodile clip

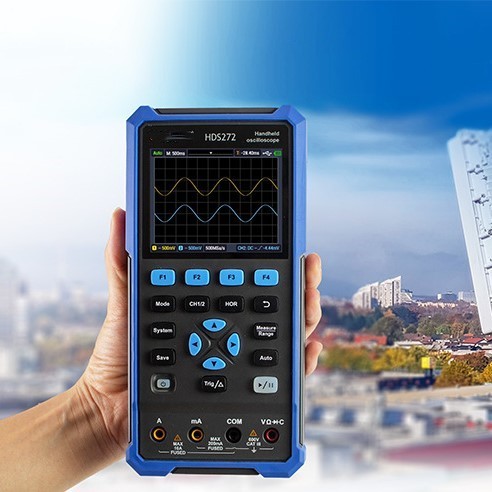

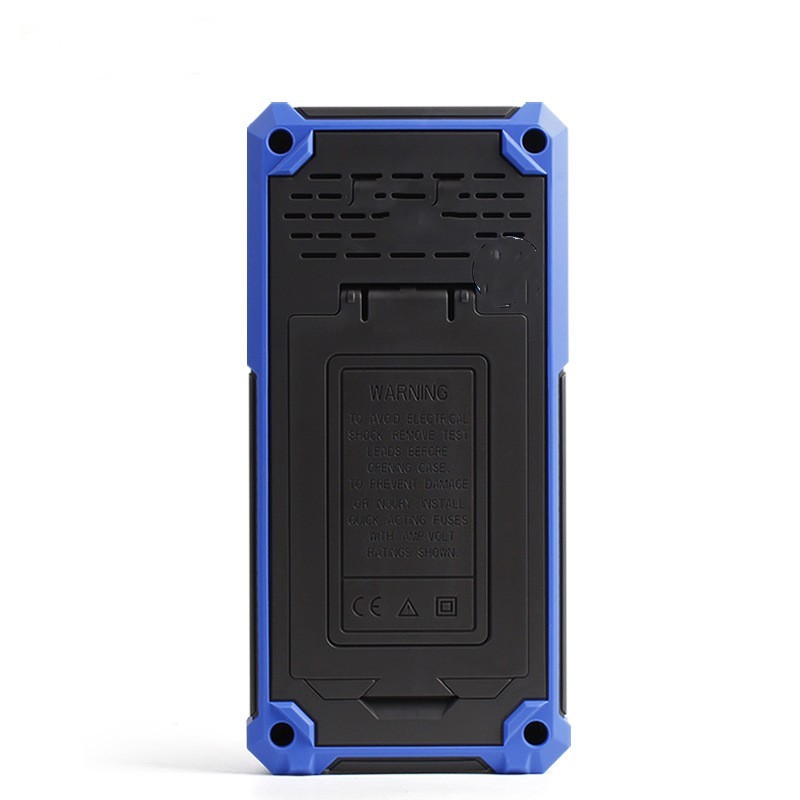

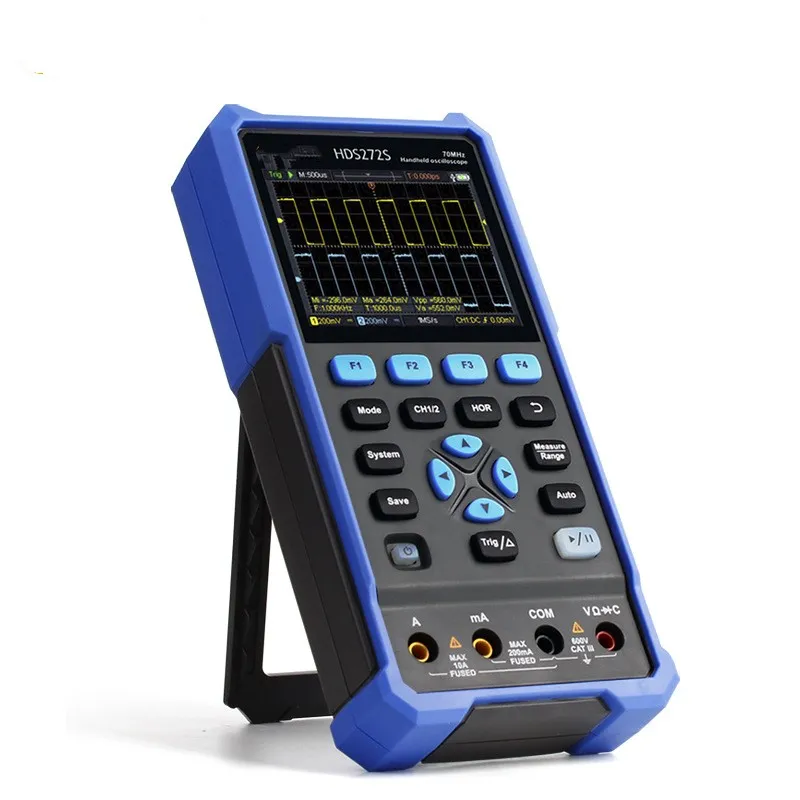

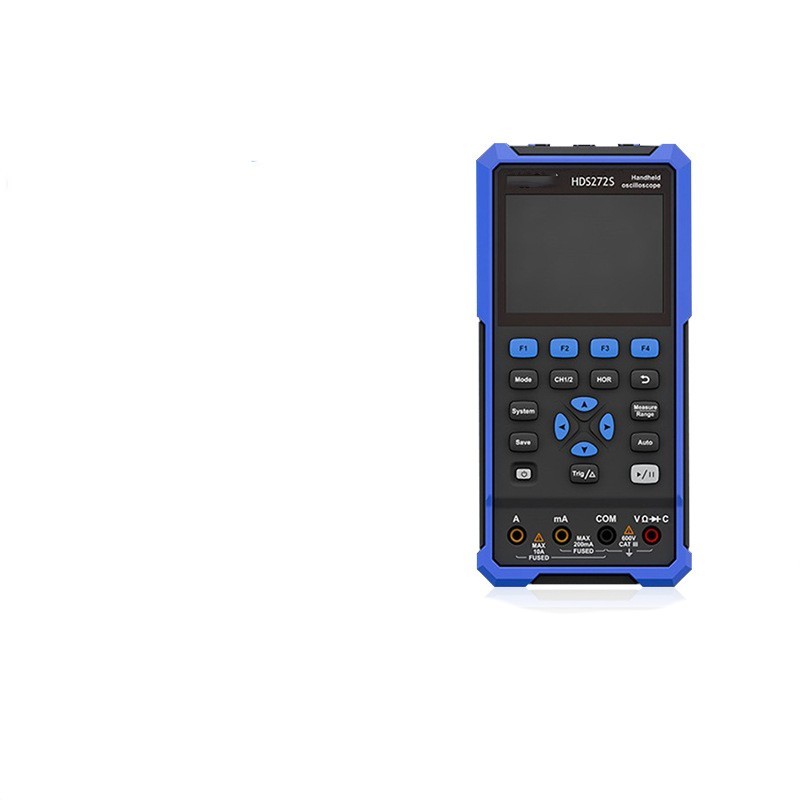

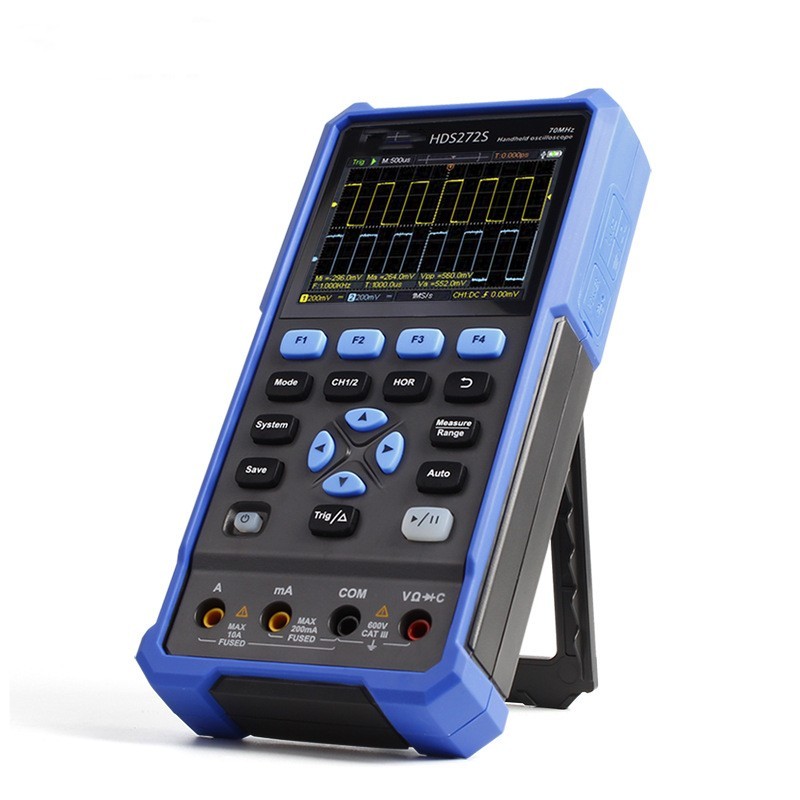

Product picture:
