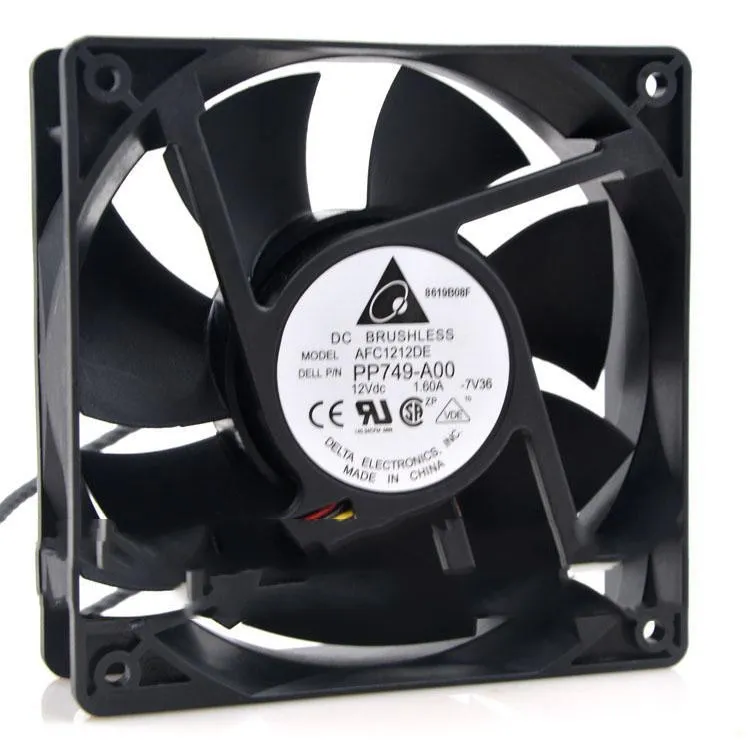

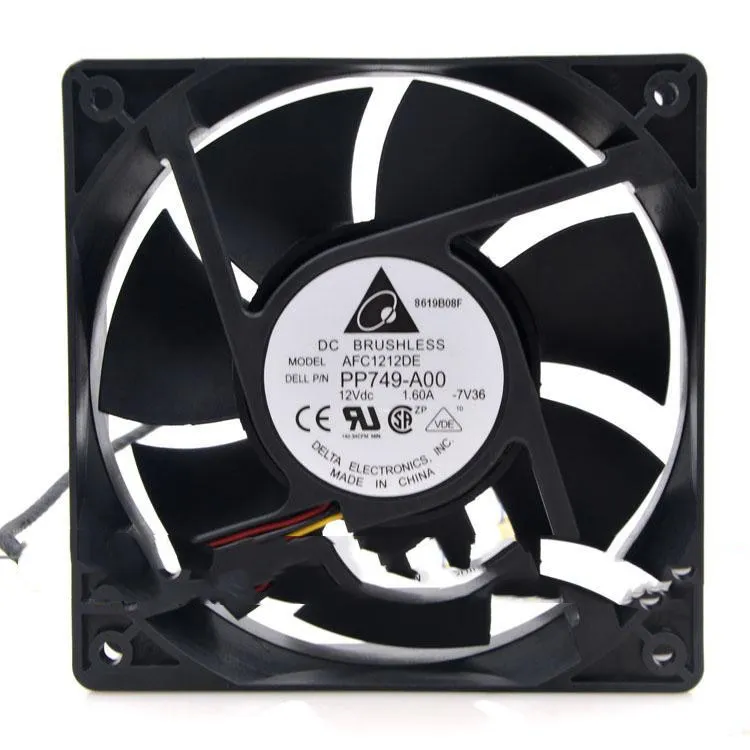

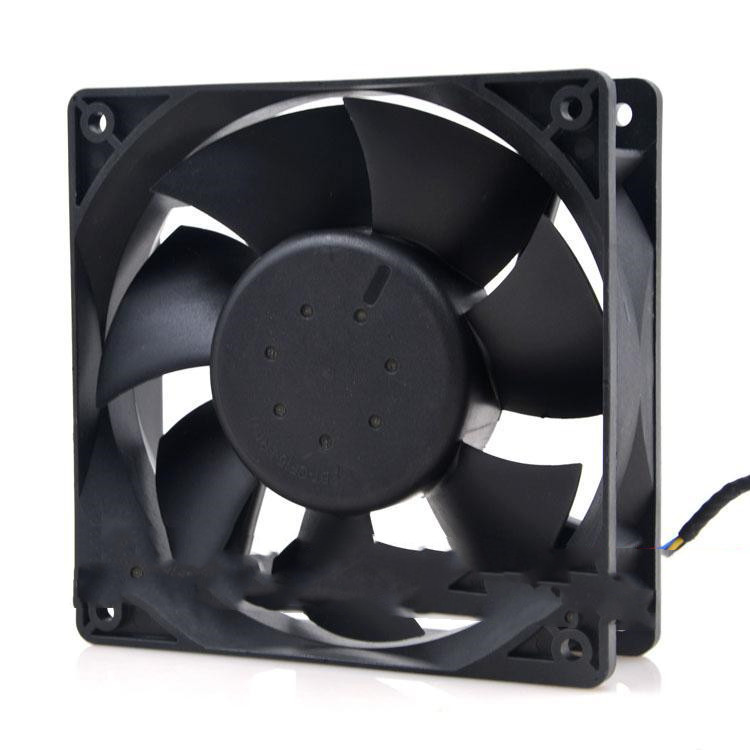

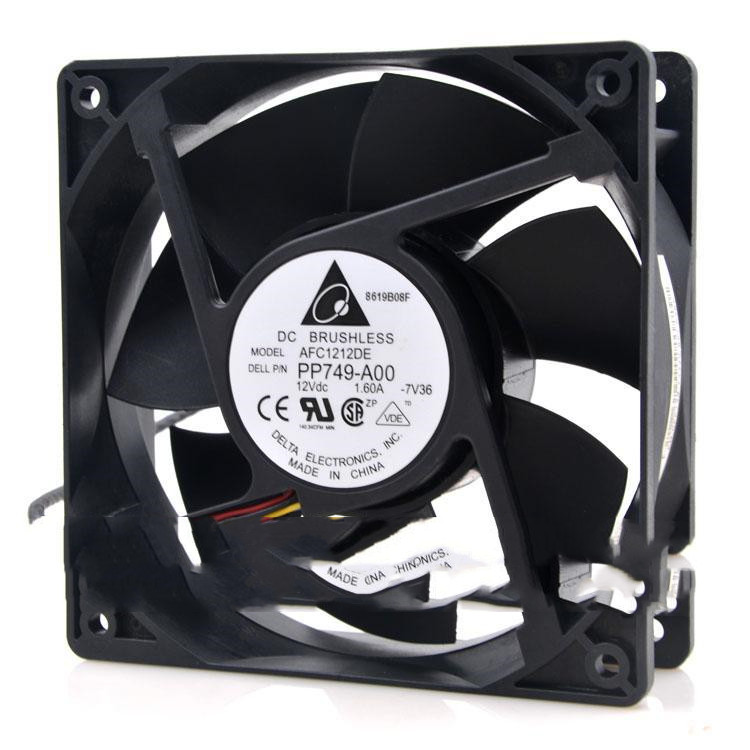

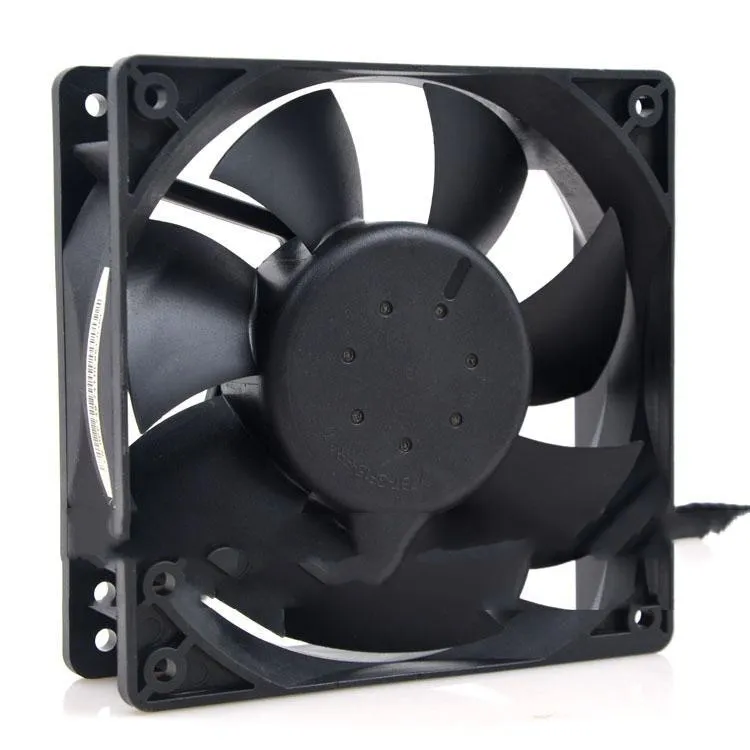

Delta AFC1212DE 12038 12V 1.6A 12CM Gale Volume Ant PWM Speed Control Cooling Fan
$34.39 NZD
Approx $20.05 USD
Description:
Product information
Lead: 4 wires (support pwm)
Voltage: DC 12V
Current: 1.60A
Speed: 4000RPM
Air volume: 154.5CFM
Noise: 45.4dB-A
Bearing: High-precision double ball bearing
Fan frame: one-time injection molding, PBT+30% glass fiber VO grade flame retardant
Fan blade: one-time injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation direction: from the direction of the fan blades, it is counterclockwise
Operating temperature: -10 degrees Celsius to +70 degrees Celsius
Storage temperature: -40 degrees Celsius to +70 degrees Celsius
Power range: plus or minus 15% of the rated power
Insulation resistance: greater than 500 megohms
Withstand voltage: sink leakage current 0.5mA 500V/1 minute
Working life: 80,000 hours at an ambient temperature of 25 degrees
Packing list
Radiator x1
